This is really excellent at weather-resistance and corrosion-resistance and suited for using outside.
This is light and easy to construct and has high strength property.
This makes cable installation easy because frictional resistance is small on FRP side
This suits to single core cable because this is non-magnetic.
FRP has excellent electric property such as one-of-a-kind electric property and arc resistance.

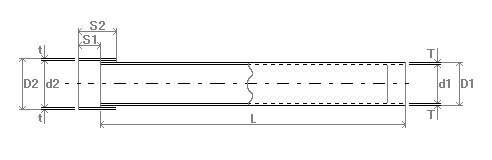

Dimension of pipe | |||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|
Type of pipe | Diameter | Pipe | Socket | ||||||||
Diameter of inside d1 |
Thickness of pipe T |
Diameter of outside for joint part D1 |
Length L |
Diameter of inside d2 |
Thickness of pipe T |
Diameter of outside D2 |
Length of inside S1 |
Length of outside S2 |
|||
FRP Pipe | 75 | 75 | 4.0 | 83 |
4000 ・ 2000 |
91 | 4.0 | 99 | 100 | 160 | |
100 | 102 | 3.5 | 109 | 117 | 4.0 | 125 | 100 | 160 | |||
125 | 125 | 3.5 | 132 | 140 | 4.0 | 148 | 100 | 160 | |||
130 | 130 | 4.0 | 138 | 148 | 4.0 | 156 | 100 | 160 | |||
150 | 150 | 4.0 | 158 | 166 | 4.0 | 174 | 100 | 160 | |||
※200 | 200 | 5.0 | 210 | 218 | 5.0 | 228 | 100 | 160 | |||
※250 | 250 | 5.0 | 260 | 269 | 4.0 | 277 | 100 | 160 |
