This shows high performance for strength and stiffness and is appropriate for ground burial.
This resists corrosion and weather.
This makes cable installation easier than existing because frictional resistance is small.
This suits to single core cable because this is non-magnetic.
This is excellent at construction because this is lightweight and easy to cut.
This is excellent at water-tightness.
This suits to weak ground because this has flexibility.
This is able to go around preventive because this has rich lineup of bent pipes.

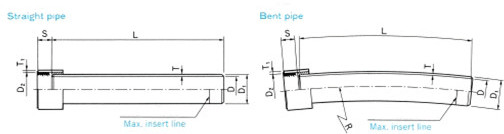

Dimension of pipe | |||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|
Type of pipe | Diameter | Pipe | Socket | Reference weight | |||||||
Diameter of inside D |
Thickness of pipe T |
Diameter of outside for joint part D1 |
Length L |
Diameter of inside D2 |
>Thickness of pipe T1 |
Diameter of outside | Length of inside (As reference) S |
Body (kg/m) |
Socket (kg) |
||
PFP | 100 | 100 | 10 | 120 | 2000 ・ 1000 |
130 | 10 | 150 | 80 | 6.9 | 1.2 |
125 | 125 | 10 | 145 | 155 | 10 | 175 | 80 | 8.5 | 1.4 | ||
130 | 130 | 10 | 150 | 160 | 10 | 180 | 80 | 8.8 | 1.5 | ||
150 | 150 | 12 | 174 | 184 | 12 | 208 | 80 | 12.2 | 2.1 | ||
175 | 175 | 13 | 201 | 211 | 13 | 237 | 100 | 15.4 | 3.2 | ||
200 | 200 | 15 | 230 | 240 | 15 | 270 | 100 | 20.3 | 4.3 | ||
250 | 250 | 18 | 286 | 196 | 18 | 332 | 100 | 30.3 | 6.3 | ||
300 | 300 | 21 | 342 | 356 | 21 | 398 | 100 | 42.4 | 10.9 |
[mm]
Radius of curvature of bent pipe | ||
---|---|---|
Diameter | Radius of curvature of bent pipe R(m) | |
Length L=1m | Length L=1m 2m | |
100 | 2.5 | 5 6 8 10 15 20 25 |
125 | 1.3 2.5 3 | 5 6 8 10 15 20 25 |
130 | 1.3 | 5 6 8 10 15 20 25 35 |
150 | 1.3 2 2.5 3 | 5 6 8 10 15 20 25 30 35 50 60 |
175 | 3 | 5 6 8 10 15 20 25 35 |
200 | 1.3 | 5 6 8 10 15 20 25 30 35 |
250 | 5 6 8 10 15 20 25 35 | |
300 | 5 10 15 20 25 |
